DASCTF2023二进制专项Reverse复现

Reverse

careful

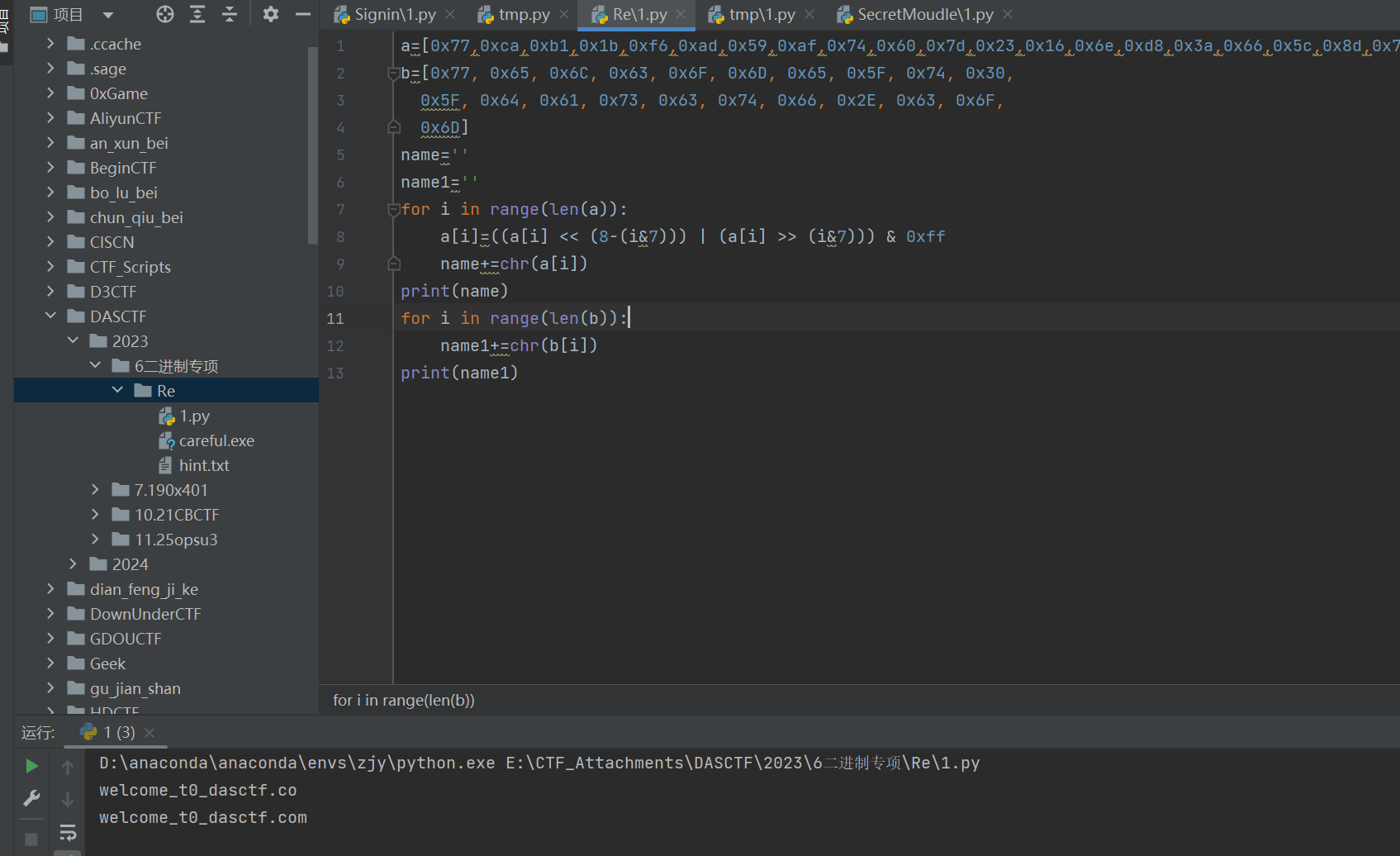

一开始直接逆向得到第一个字符串

交叉引用发现另一个域名，且在dasctf之后

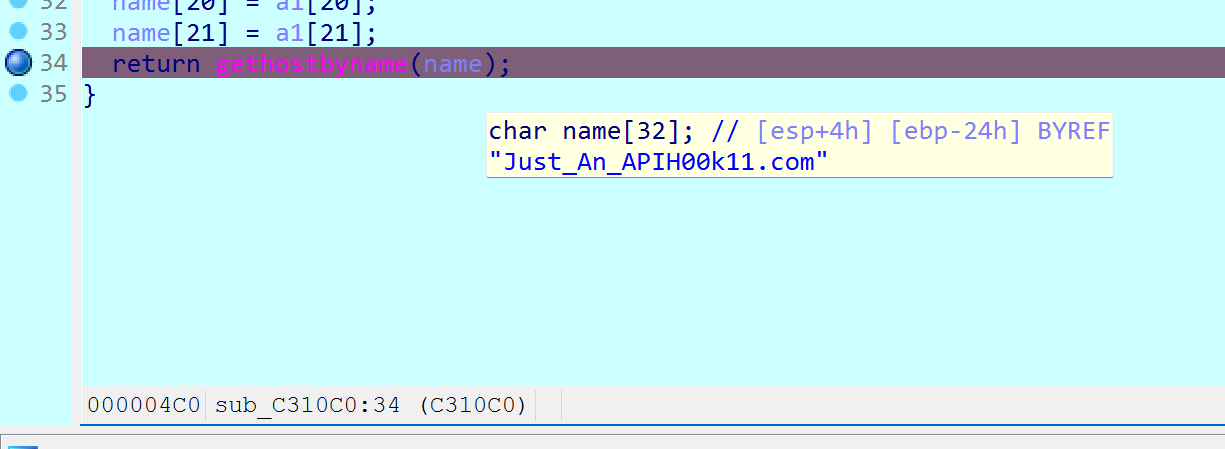

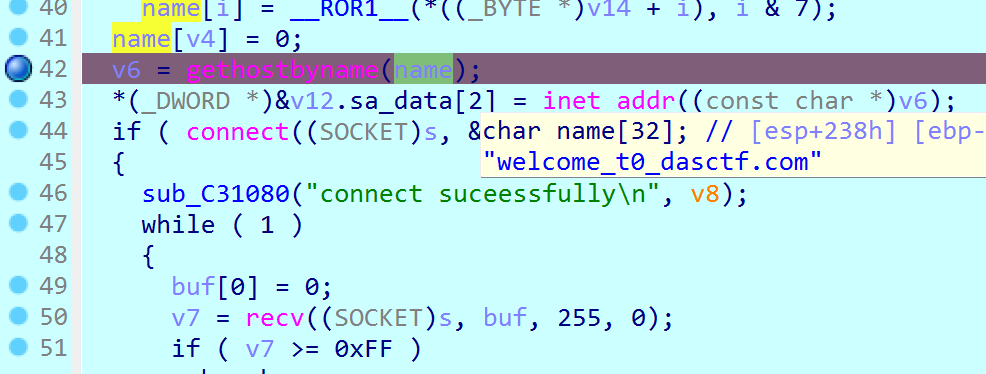

下断点步入gethostbyname之后也确实能看到

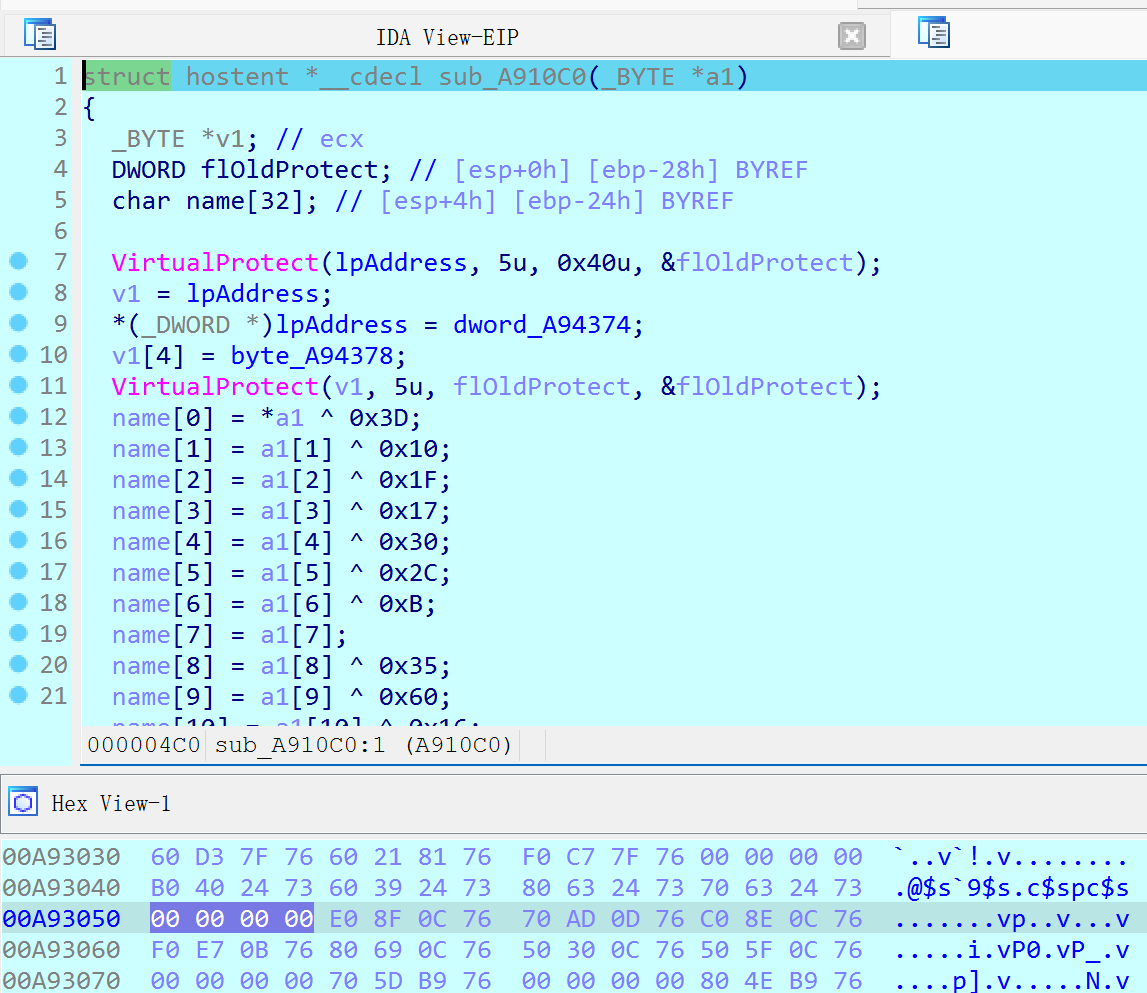

实际上存在内联hook，hook这个API函数以修改传入的参数，然后调用真正的API

babyre

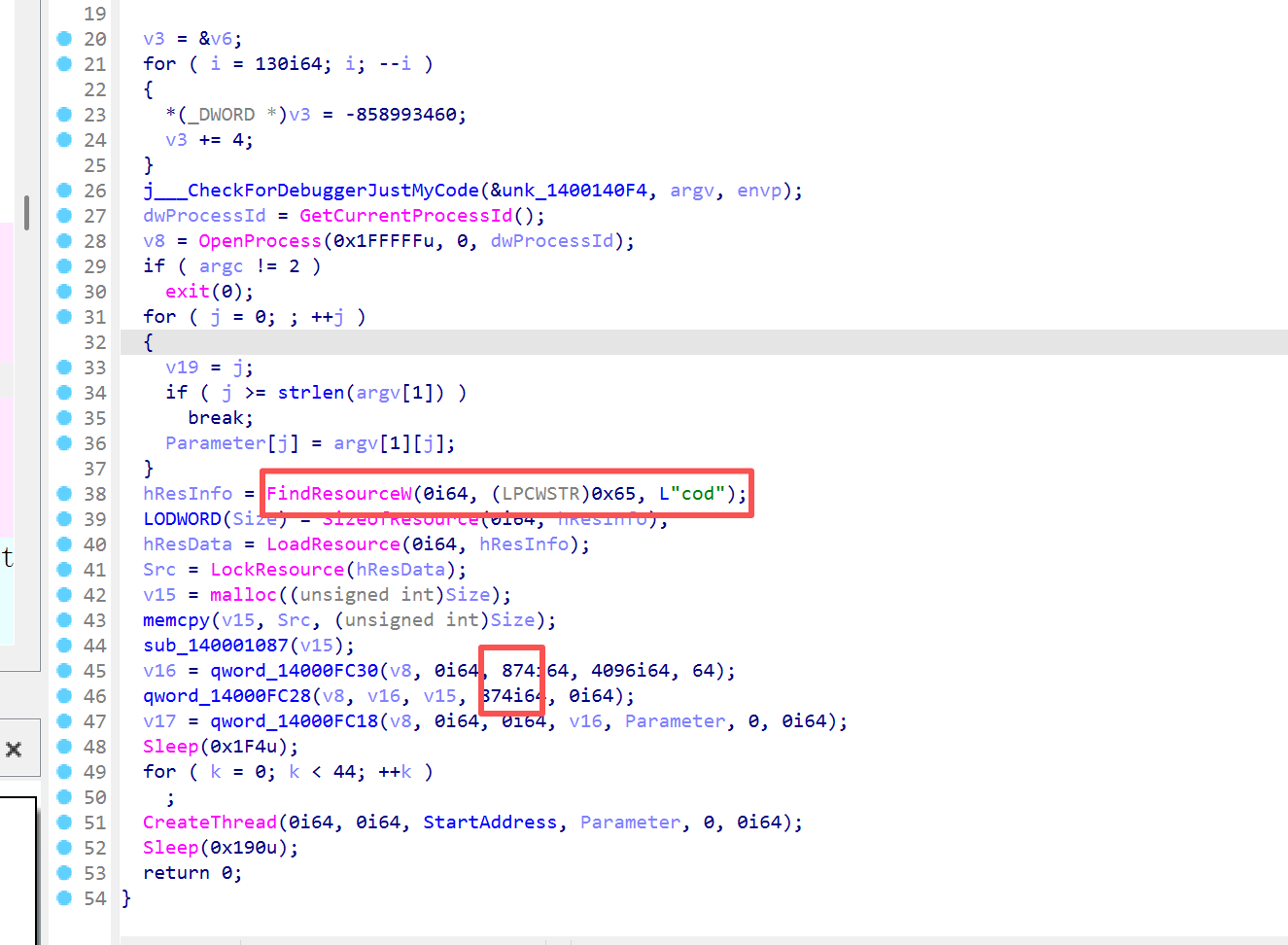

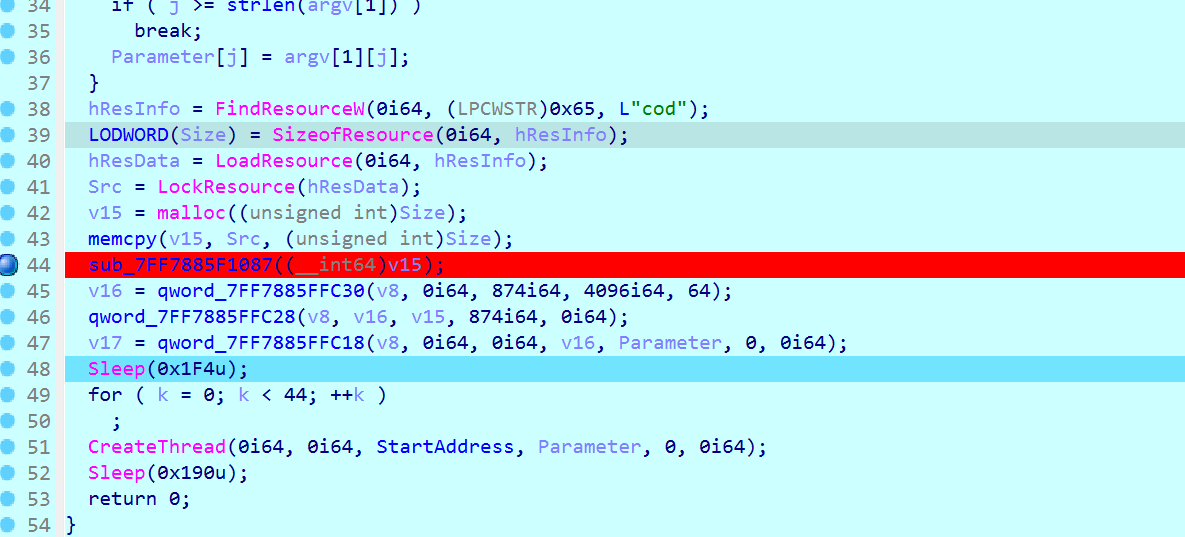

flag输入由参数argv传递，后面读取名称为cod的资源

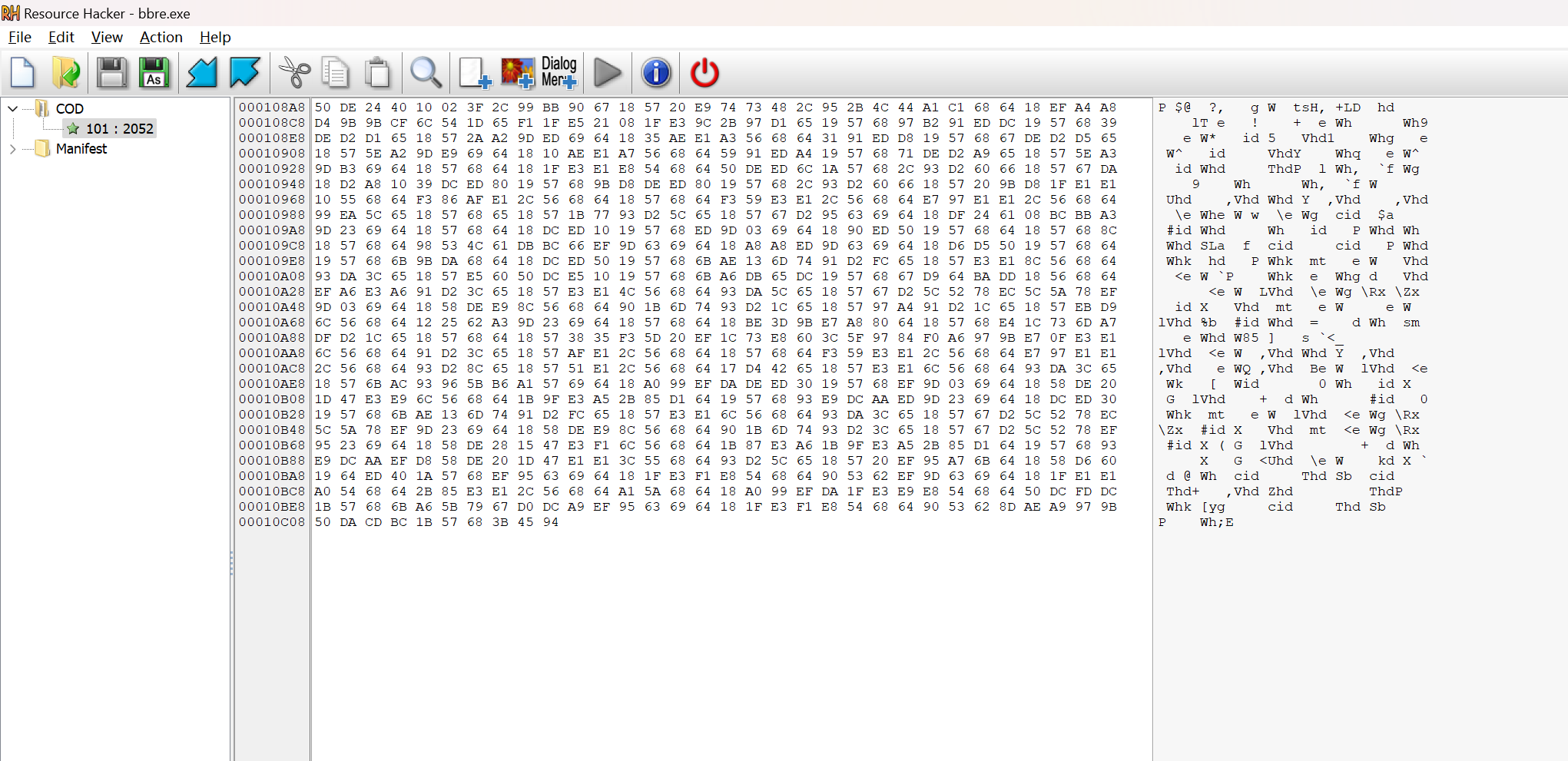

用 resource hacker 把资源复制下来

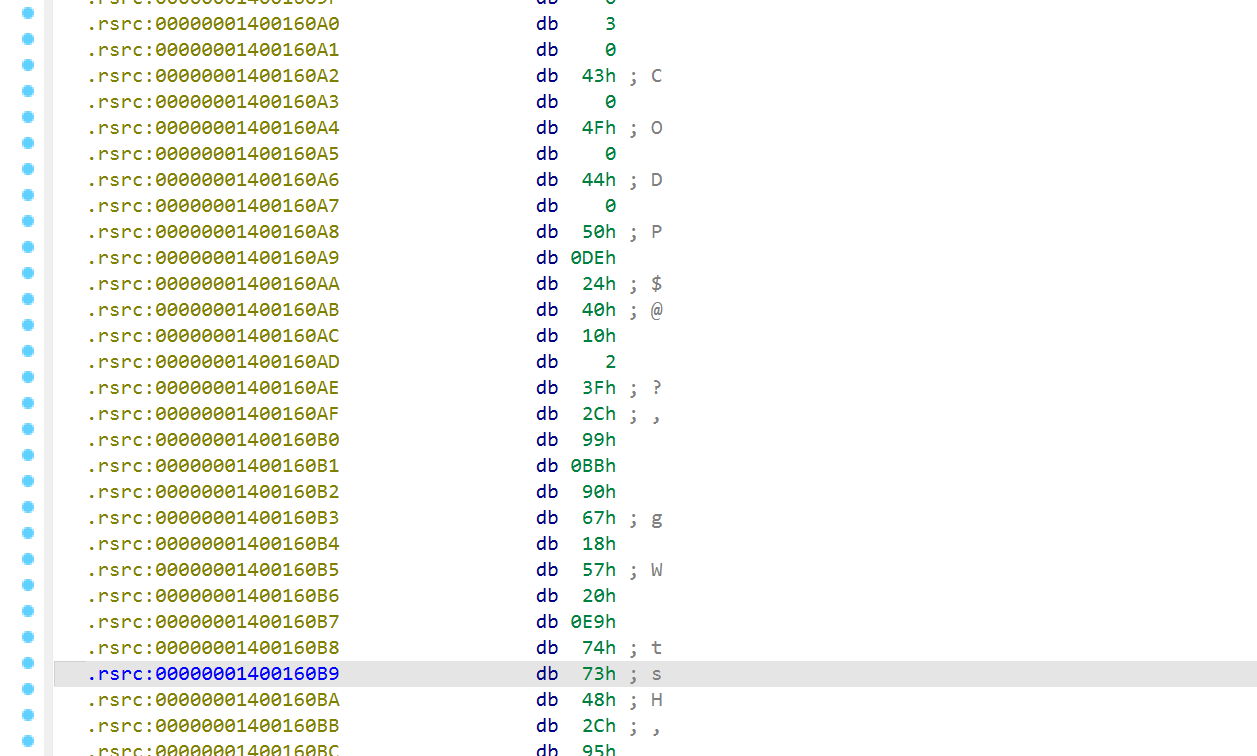

也可以IDA加载exe时设置Load Resource，大小为874字节就能看到要加载的资源

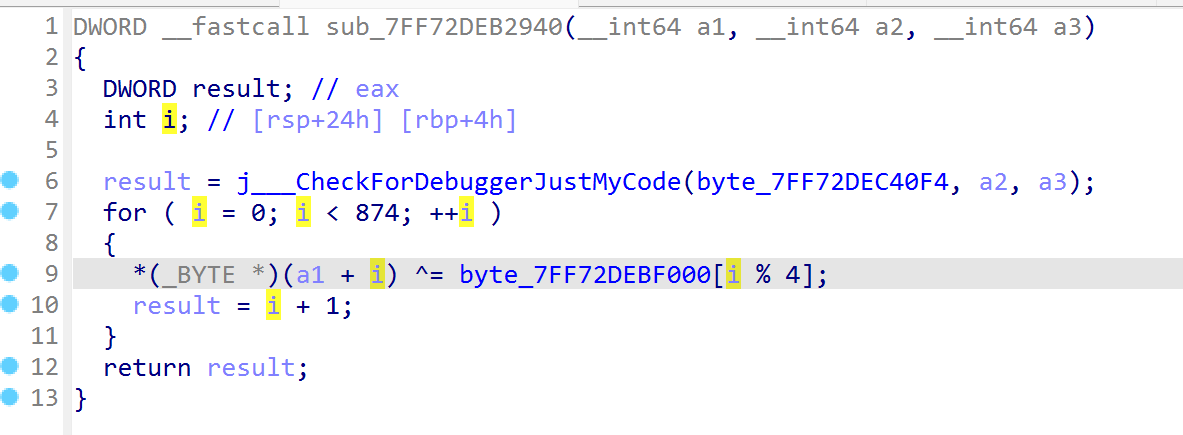

循环异或四位

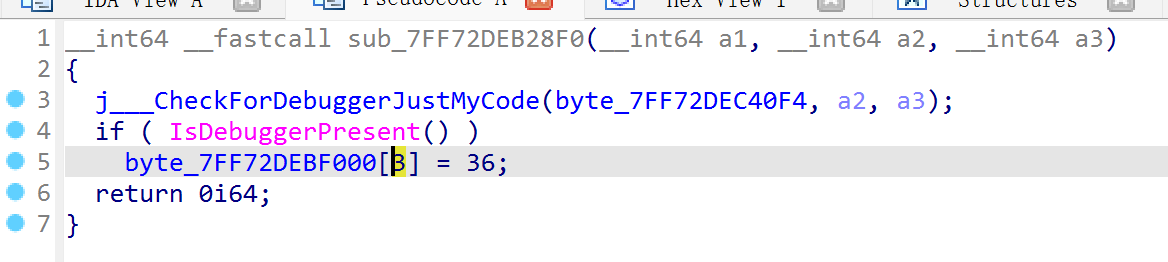

但是有反调试，直接静态分析

arr = [0x18, 0x57, 0x68, 0x64]
with open('COD101.bin', 'rb') as f:
    b = f.read()
b = bytearray(b)
for i in range(len(b)):
    b[i] = b[i] ^ arr[i % 4]
with open('dump', 'wb') as f:
    f.write(b)

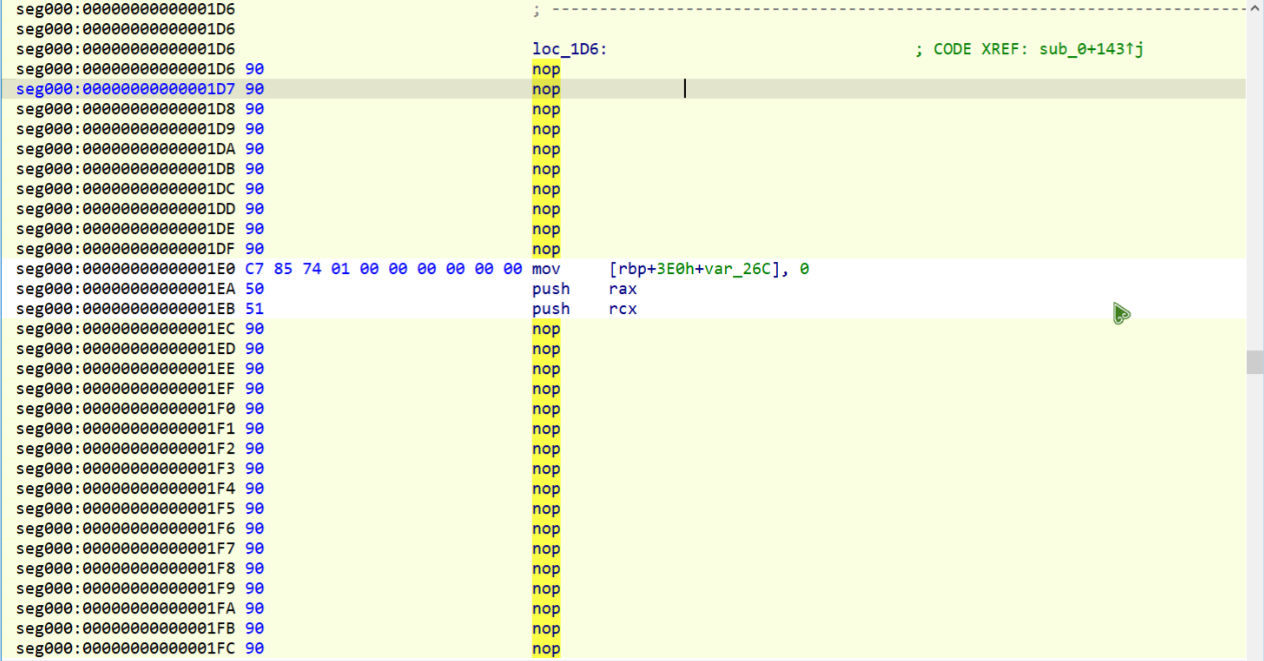

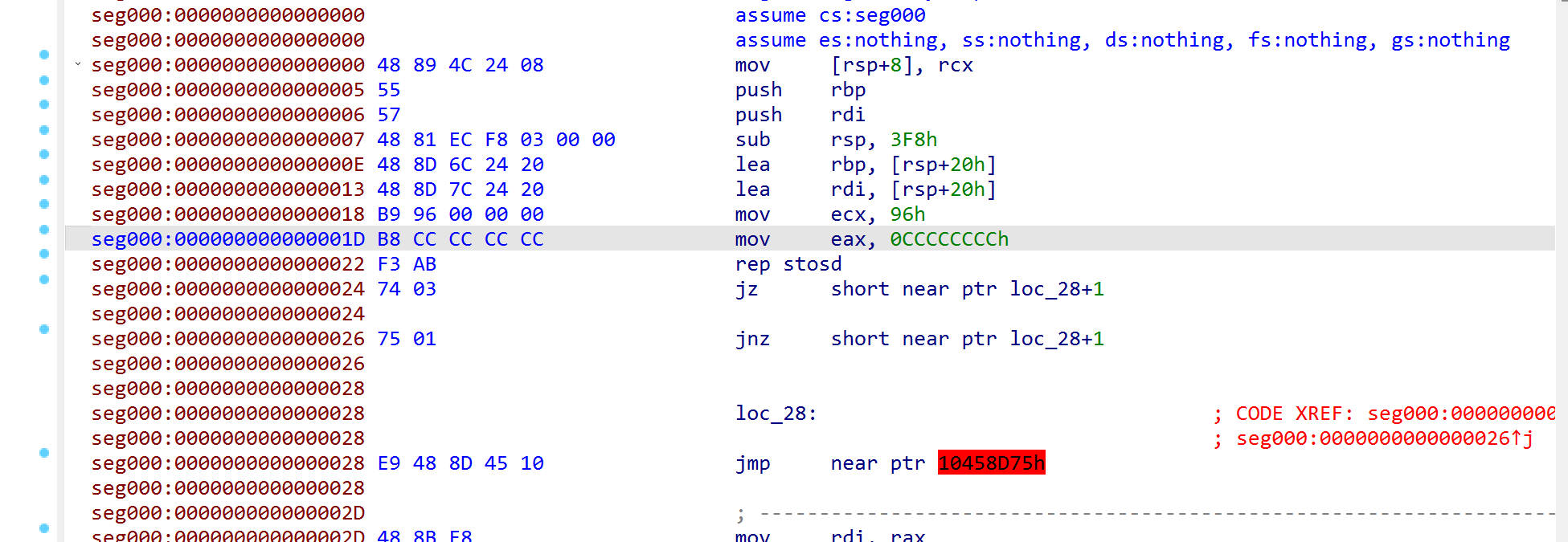

花指令1d到28全部nop

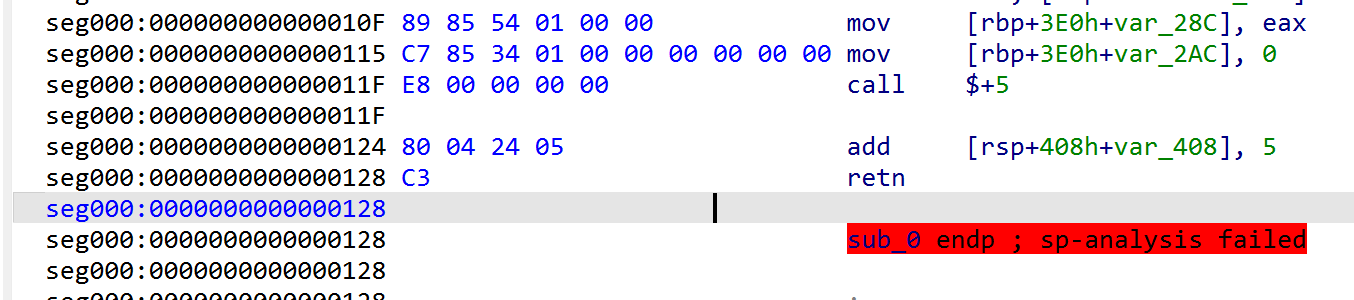

然后把几处call到retn全部nop

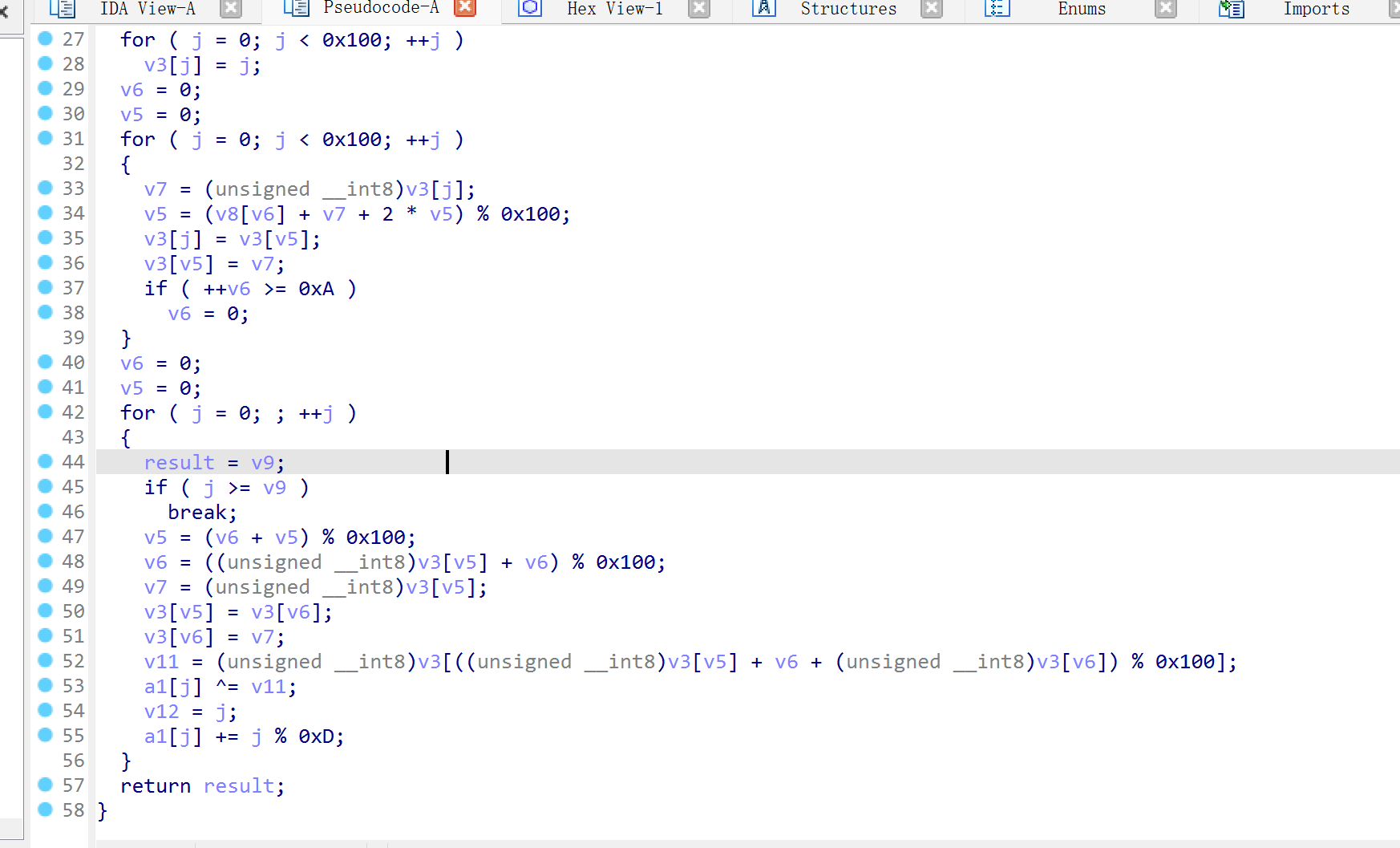

魔改rc4

rc4魔改

def rc4(data, key):
    S = list(range(256))
    out = []

    v7 = 0
    v8 = 0

    for i in range(256):
        v9 = S[i]
        v7 = (key[v8] + v9 + 2 * v7) & 0xFF
        S[i] = S[v7]
        S[v7] = v9
        v8 += 1
        if v8 >= 10:
            v8 = 0

    j2 = 0
    i3 = 0
    cnt = 0

    for char in data:
        # 逆向的时候先减
        char = (char - (cnt % 0xD)) & 0xFF
        cnt += 1

        i3 = (i3 + j2) & 0xFF
        j2 = (S[i3] + j2) & 0xFF

        S[i3], S[j2] = S[j2], S[i3]

        rnd = S[(S[i3] + j2 + S[j2]) & 0xFF]
        out.append(char ^ rnd)

    return bytes(out)

data = bytes([
    0xF7, 0x2E, 0x34, 0xF0, 0x72, 0xCF, 0x5E, 0x0A,
    0xBB, 0xEC, 0xB1, 0x2B, 0x70, 0x88, 0x88, 0xED,
    0x46, 0x38, 0xDB, 0xDA, 0x6C, 0xBD, 0xD4, 0x06,
    0x77, 0xF2, 0xCF, 0x56, 0x88, 0xC6, 0x31, 0xD2,
    0xB7, 0x5A, 0xC1, 0x42, 0xB0, 0xF4, 0x48, 0x37,
    0xF5, 0x2C, 0xF5, 0x58
])

key = bytes([93, 66, 98, 41, 3, 54, 71, 65, 21, 54])

decrypted = rc4(data, key)
print(decrypted)
#DASCTF{03446c2c-dff7-11ed-9285-54e1ad98d649}

也可以调试，下断点到sleep之前

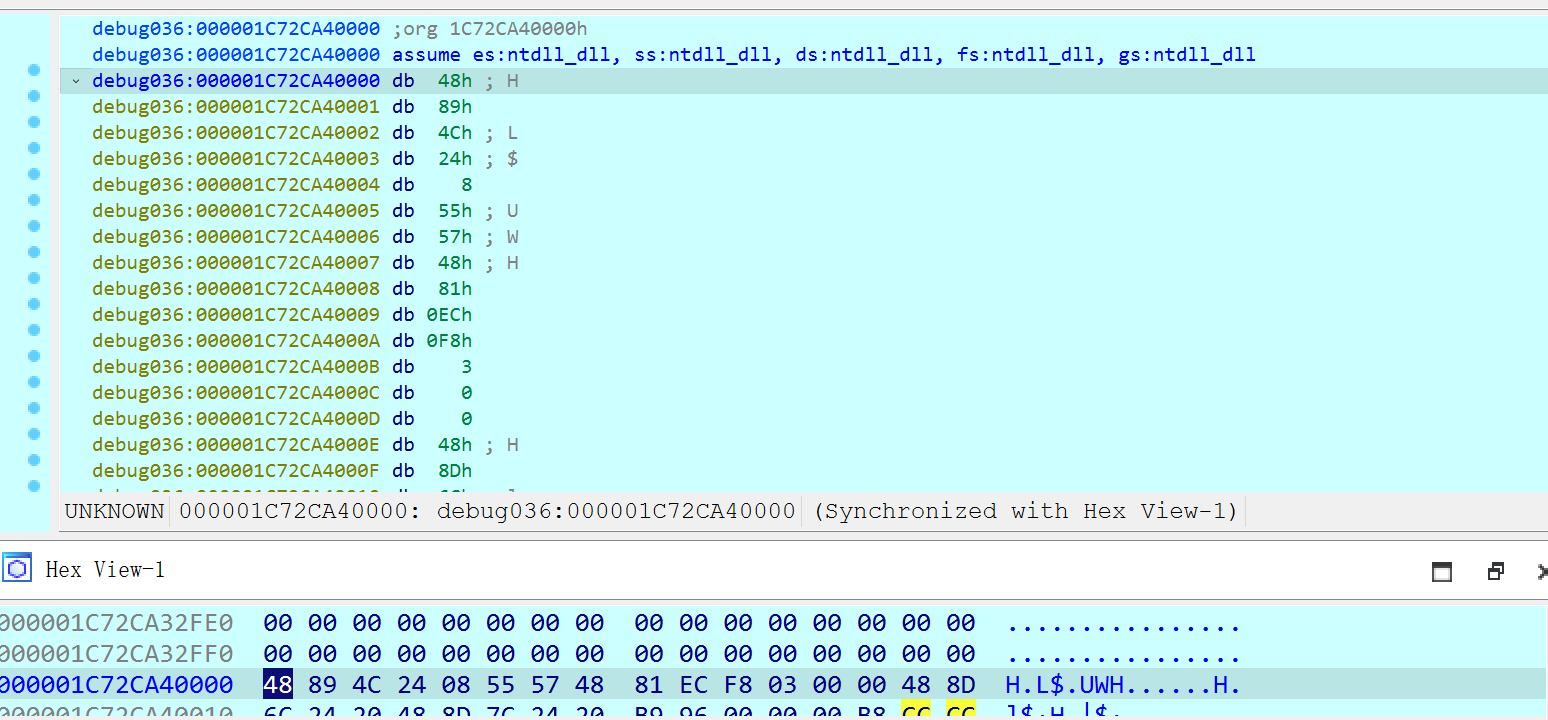

查看v16的内容，作为地址访问数据，可以看到shellcode

ez_exe

exe反编译得到pyc，但是代码逻辑不全

#!/usr/bin/env python
# visit https://tool.lu/pyc/ for more information
# Version: Python 3.11

import ctypes
from time import *
from ctypes import *
from ctypes import wintypes
from hashlib import md5

class _STARTUPINFO(Structure):
    _fields_ = [
        ('cb', c_ulong),
        ('lpReserved', c_char_p),
        ('lpDesktop', c_char_p),
        ('lpTitle', c_char_p),
        ('dwX', c_ulong),
        ('dwY', c_ulong),
        ('dwXSize', c_ulong),
        ('dwYSize', c_ulong),
        ('dwXCountChars', c_ulong),
        ('dwYCountChars', c_ulong),
        ('dwFillAttribute', c_ulong),
        ('dwFlags', c_ulong),
        ('wShowWindow', c_ushort),
        ('cbReserved2', c_ushort),
        ('lpReserved2', c_char_p),
        ('hStdInput', c_ulong),
        ('hStdOutput', c_ulong),
        ('hStdError', c_ulong)]


class _PROCESS_INFORMATION(Structure):
    _fields_ = [
        ('hProcess', c_void_p),
        ('hThread', c_void_p),
        ('dwProcessId', c_ulong),
        ('dwThreadId', c_ulong)]

StartupInfo = _STARTUPINFO()
ProcessInfo = _PROCESS_INFORMATION()
key1 = bytes(md5(b'bin1bin1bin1').hexdigest().encode())
file = open('bin1', 'rb').read()
arr = range(len(file))()
open('bin1', 'wb').write(bytes(arr))
sleep(0)
bet = ctypes.windll.kernel32.CreateProcessA(b'bin1', ctypes.c_int(0), ctypes.c_int(0), ctypes.c_int(0), ctypes.c_int(0), ctypes.c_int(0), ctypes.c_int(0), ctypes.c_int(0), byref(StartupInfo), byref(ProcessInfo))
ctypes.windll.kernel32.WaitForSingleObject(ctypes.c_int(ProcessInfo.hProcess), ctypes.c_int(-1))
open('bin1', 'wb').write(file)

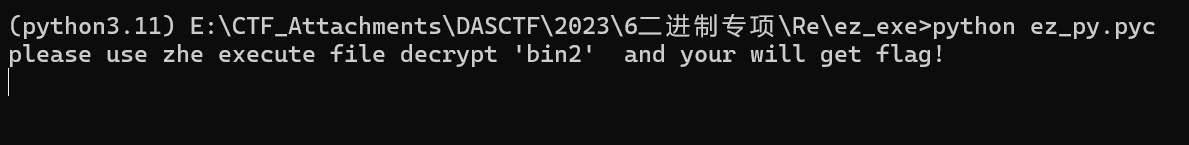

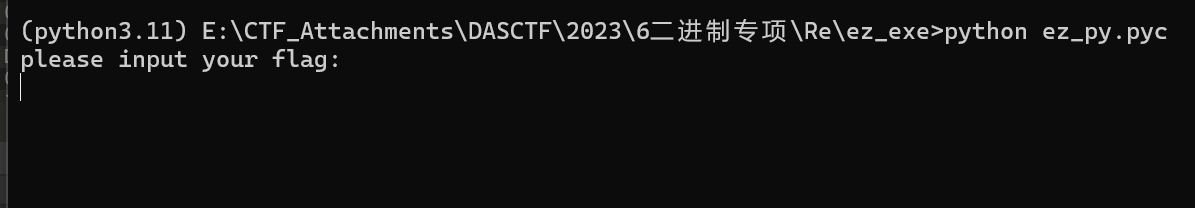

对应python去运行pyc提示decrypt bin2

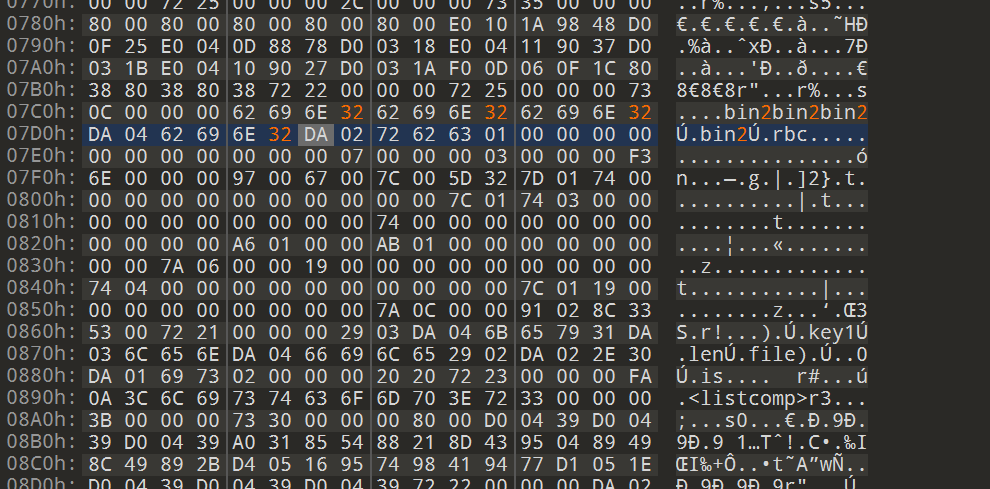

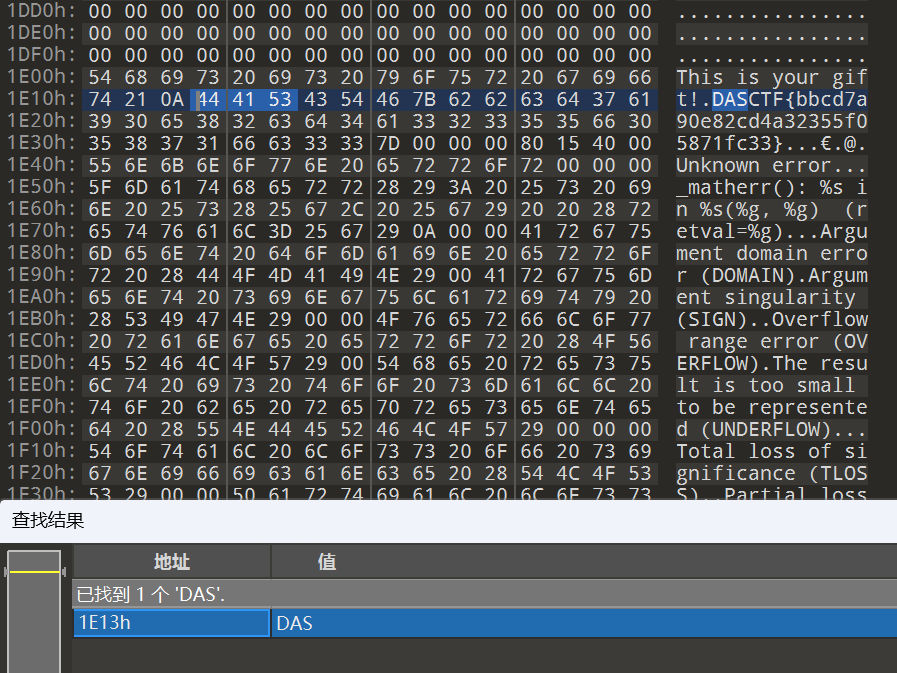

此时去看bin1已经解密，运行就得到上面的字符串，考虑把pyc里的bin1改成bin2，一共五处

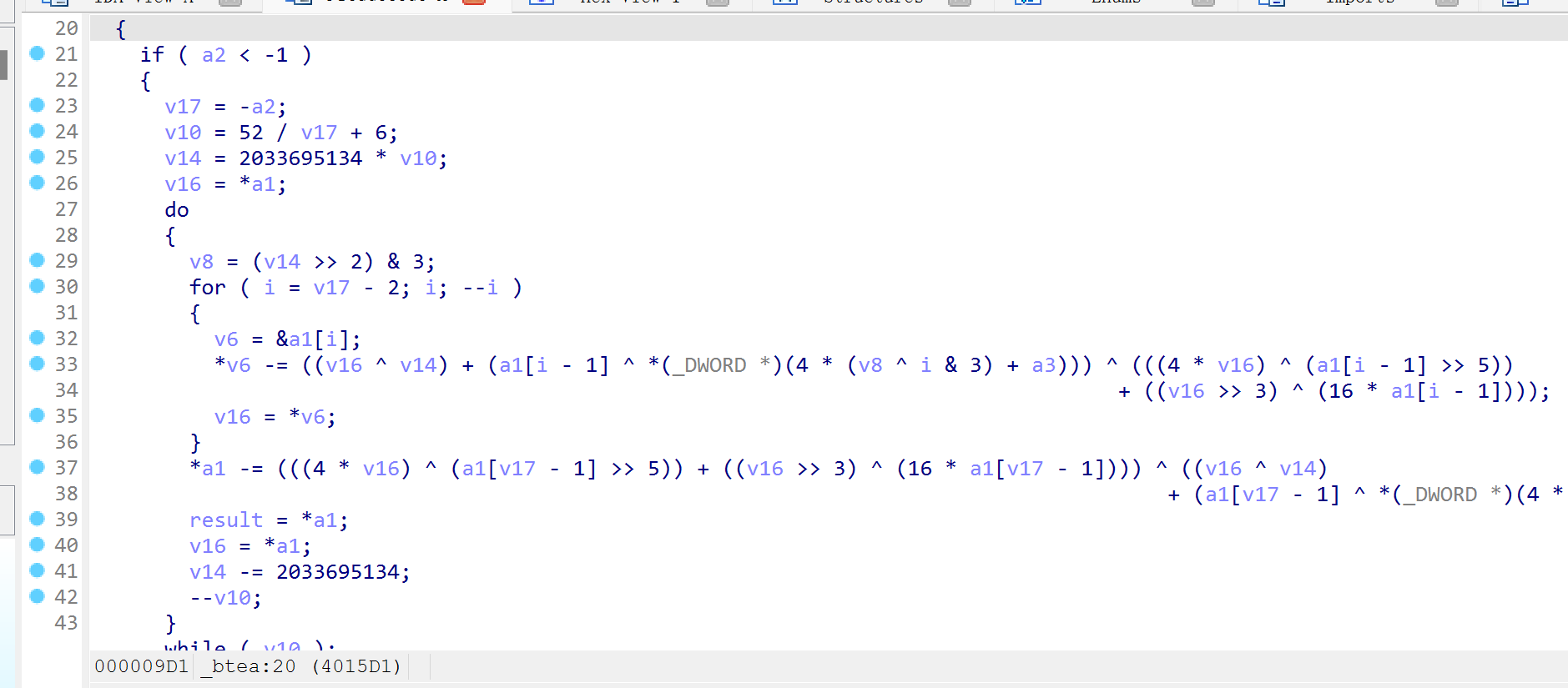

明显的xxtea，直接套模板

只有轮数和delta有魔改

#include <stdio.h>
#include <stdint.h>
#define DELTA 0x7937B99E
// #define DELTA 0x9e3779b9
#define MX (((z>>5^y<<2) + (y>>3^z<<4)) ^ ((sum^y) + (key[(p&3)^e] ^ z)))

void btea(uint32_t *v, int n, uint32_t const key[4]) {
    uint32_t y, z, sum;
    unsigned p, rounds, e;
    if (n > 1) {          /* Coding Part */
        rounds = 52/n;
        //rounds = 6 + 52/n;
        sum = 0;
        z = v[n-1];
        do {
            sum += DELTA;
            e = (sum >> 2) & 3;
            for (p=0; p<n-1; p++) {
                y = v[p+1];
                z = v[p] += MX;
            }
            y = v[0];
            z = v[n-1] += MX;
        } while (--rounds);
    } else if (n < -1) {  /* Decoding Part */
        n = -n;
        rounds = 52/n;
        //rounds = 6 + 52/n;
        sum = rounds*DELTA;
        y = v[0];
        do {
            e = (sum >> 2) & 3;
            for (p=n-1; p>0; p--) {
                z = v[p-1];
                y = v[p] -= MX;
            }
            z = v[n-1];
            y = v[0] -= MX;
        } while ((sum -= DELTA) != 0);
    }
}

int main()
{
    //uint32_t const key[4]={0x01234567,0x89ABCDEF,0xFEDCBA98,0x76543210};
    uint32_t key[4] = {0};
    key[0] = 0x4B5F;
    key[1] = 0xDEAD;
    key[2] = 0x11ED;
    key[3] = 0xB3CC;
    //uint32_t data[2]={0x12345678,0x87654321};
    uint32_t data[11];
    data[0] = 0xCC45699D;
    data[1] = 0x683D5352;
    data[2] = 0xB8BB71A0;
    data[3] = 0x0D3817AD;
    data[4] = 0x7547E79E;
    data[5] = 0x4BDD8C7C;
    data[6] = 0x95E25A81;
    data[7] = 0xC4525103;
    data[8] = 0x7049B46F;
    data[9] = 0x5417F77C;
    data[10]= 0x65567138;
    uint32_t *sent=data;
    //btea(sent,1,key);

    btea(sent,-11,key);
    //printf("%s\n\n",data);
    for (int i = 0; i < 44; i++){
        printf("%c",*((char *)data +i) & 0xff);
    }
    return 0;
}

DASCTF{7eb20cb2-deac-11ed-ae42-94085339ce84}

cap

获取BMP图片然后加密保存为cap.bin，后面有异或操作，可以动调看密钥或者直接去看加密bin文件

__int64 __fastcall sub_140001030(HWND hWnd)
{
    HBITMAP v2; // r14
    HDC hdcSrc; // r13
    HDC DC; // rsi
    HDC CompatibleDC; // r15
    int hSrc; // ebx
    int wSrc; // eax
    HBITMAP CompatibleBitmap; // rax
    signed int v9; // ebx
    HANDLE FileW; // rax
    void *v11; // r12
    signed int v12; // r10d
    _BYTE *v13; // r9
    int v14; // ecx
    int v15; // edx
    void *lpBuffer; // [rsp+60h] [rbp-59h]
    HGLOBAL hMem; // [rsp+68h] [rbp-51h]
    struct tagRECT Rect; // [rsp+70h] [rbp-49h] BYREF
    struct tagBITMAPINFO bmi; // [rsp+80h] [rbp-39h] BYREF
    char v21; // [rsp+ACh] [rbp-Dh]
    char v22; // [rsp+ADh] [rbp-Ch]
    char v23; // [rsp+AEh] [rbp-Bh]
    char v24; // [rsp+AFh] [rbp-Ah]
    char v25; // [rsp+B0h] [rbp-9h]
    char v26; // [rsp+B1h] [rbp-8h]
    int v27; // [rsp+B2h] [rbp-7h]
    DWORD NumberOfBytesWritten; // [rsp+B8h] [rbp-1h] BYREF
    char pv[4]; // [rsp+C0h] [rbp+7h] BYREF
    LONG v30; // [rsp+C4h] [rbp+Bh]
    UINT cLines; // [rsp+C8h] [rbp+Fh]

    NumberOfBytesWritten = 0;
    v2 = 0i64;
    hdcSrc = GetDC(0i64);
    DC = GetDC(hWnd);
    CompatibleDC = CreateCompatibleDC(DC);
    if ( CompatibleDC )
    {
        GetClientRect(hWnd, &Rect);
        SetStretchBltMode(DC, 4);
        hSrc = GetSystemMetrics(1);
        wSrc = GetSystemMetrics(0);
        if ( StretchBlt(DC, 0, 0, Rect.right, Rect.bottom, hdcSrc, 0, 0, wSrc, hSrc, 0xCC0020u) )
        {
            CompatibleBitmap = CreateCompatibleBitmap(DC, Rect.right - Rect.left, Rect.bottom - Rect.top);
            v2 = CompatibleBitmap;
            if ( CompatibleBitmap )
            {
                SelectObject(CompatibleDC, CompatibleBitmap);
                if ( BitBlt(CompatibleDC, 0, 0, Rect.right - Rect.left, Rect.bottom - Rect.top, DC, 0, 0, 0xCC0020u) )
                {
                    GetObjectW(v2, 32, pv);
                    bmi.bmiHeader.biWidth = v30;
                    bmi.bmiHeader.biHeight = cLines;
                    bmi.bmiHeader.biSize = 40;
                    *(_QWORD *)&bmi.bmiHeader.biPlanes = 2097153i64;
                    memset(&bmi.bmiHeader.biSizeImage, 0, 20);
                    v9 = 4 * cLines * ((32 * v30 + 31) / 32);
                    hMem = GlobalAlloc(0x42u, (unsigned int)v9);
                    lpBuffer = GlobalLock(hMem);
                    GetDIBits(DC, v2, 0, cLines, lpBuffer, &bmi, 0);
                    FileW = CreateFileW(L"cap.bin", 0x40000000u, 0, 0i64, 2u, 0x80u, 0i64);
                    v23 ^= 0x64u;
                    v24 ^= 0x61u;
                    v11 = FileW;
                    v25 ^= 0x73u;
                    v26 ^= 0x63u;
                    bmi.bmiHeader.biSize ^= 0x79625F63u;
                    bmi.bmiHeader.biWidth ^= 0x7361645Fu;
                    bmi.bmiHeader.biHeight ^= 0x65667463u;
                    *(_QWORD *)&bmi.bmiHeader.biPlanes ^= 0x61645F79625F636Eui64;
                    bmi.bmiColors[0].rgbReserved = ((unsigned __int16)(v9 + 54) >> 8) ^ 0x62;
                    v21 = ((unsigned int)(v9 + 54) >> 16) ^ 0x79;
                    v22 = ((unsigned int)(v9 + 54) >> 24) ^ 0x5F;
                    v27 = 1852139074;
                    bmi.bmiColors[0].rgbGreen = 46;
                    bmi.bmiColors[0].rgbBlue = 44;
                    bmi.bmiColors[0].rgbRed = (v9 + 54) ^ 0x5F;
                    v12 = 0;
                    bmi.bmiHeader.biSizeImage ^= 0x66746373u;
                    bmi.bmiHeader.biXPelsPerMeter ^= 0x5F636E65u;
                    bmi.bmiHeader.biYPelsPerMeter ^= 0x645F7962u;
          bmi.bmiHeader.biClrUsed ^= 0x74637361u;
          bmi.bmiHeader.biClrImportant ^= 0x636E6566u;
          if ( v9 > 0 )
          {
            v13 = lpBuffer;
            do
            {
              v14 = v12 + 3;
              v15 = (unsigned __int64)(1321528399i64 * (v12 + 3)) >> 32;
              ++v12;
              *v13++ ^= aEncByDasctf[v14 - 13 * (((unsigned int)v15 >> 31) + (v15 >> 2))];
            }
            while ( v12 < v9 );
          }
          WriteFile(FileW, bmi.bmiColors, 0xEu, &NumberOfBytesWritten, 0i64);
          WriteFile(v11, &bmi, 0x28u, &NumberOfBytesWritten, 0i64);
          WriteFile(v11, lpBuffer, v9, &NumberOfBytesWritten, 0i64);
          GlobalUnlock(hMem);
          GlobalFree(hMem);
          CloseHandle(v11);
        }
        else
        {
          MessageBoxW(hWnd, L"BitBlt has failed", L"Failed", 0);
        }
      }
      else
      {
        MessageBoxW(hWnd, L"CreateCompatibleBitmap Failed", L"Failed", 0);
      }
    }
    else
    {
      MessageBoxW(hWnd, L"StretchBlt has failed", L"Failed", 0);
    }
  }
  else
  {
    MessageBoxW(hWnd, L"CreateCompatibleDC has failed", L"Failed", 0);
  }
  DeleteObject(v2);
  DeleteObject(CompatibleDC);
  ReleaseDC(0i64, hdcSrc);
  ReleaseDC(hWnd, DC);
  return 0i64;
}

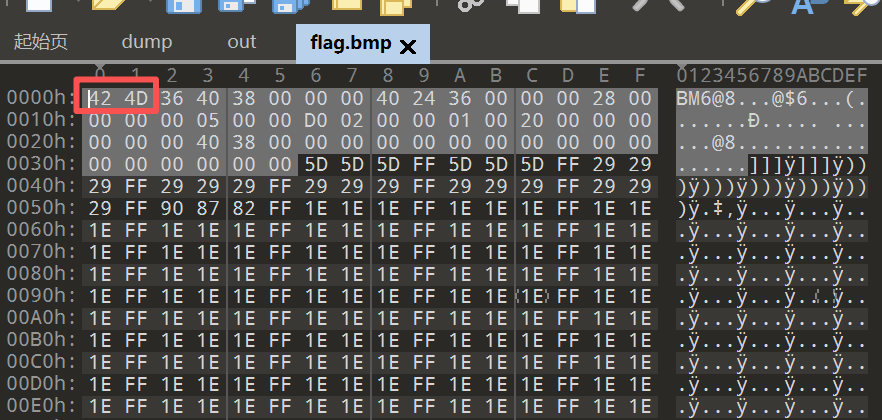

bmp文件头和加密字节前两文异或，就是密钥的二三位

根据格式后面位信息头有部分是0，异或密钥刚好就等于密钥

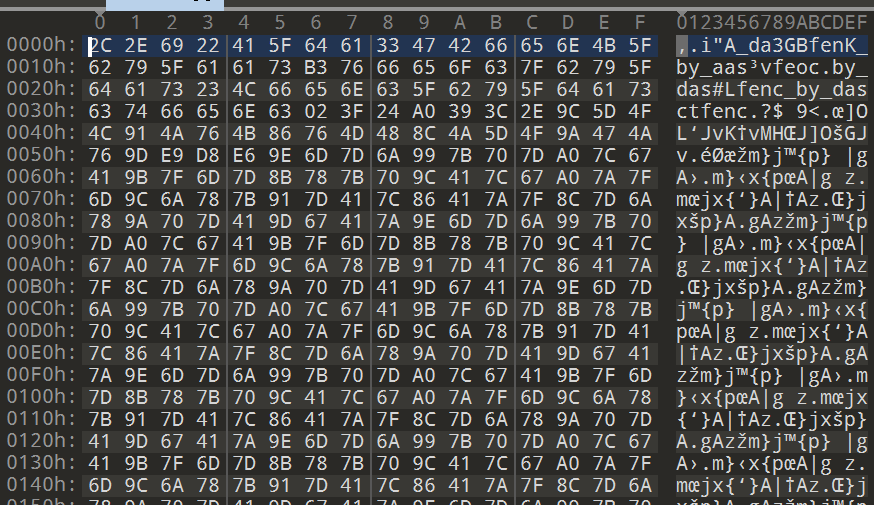

bin文件里看到一些enc_by_das，那大概率就是循环异或

key = "enc_by_dasctf"
with open('cap.bin', 'rb') as f:
    s = bytearray(f.read())
for i in range(len(s)):
    s[i] ^= ord(key[(i+1) % len(key)])
with open('flag.bmp', 'wb') as f:
    f.write(s)

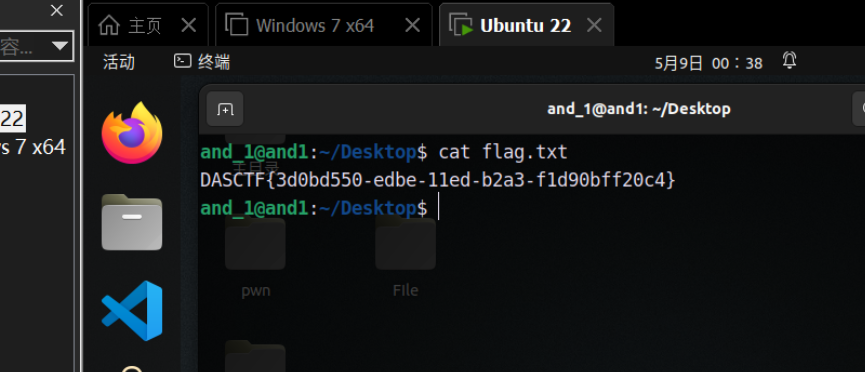

直接就能得到图片

unsym

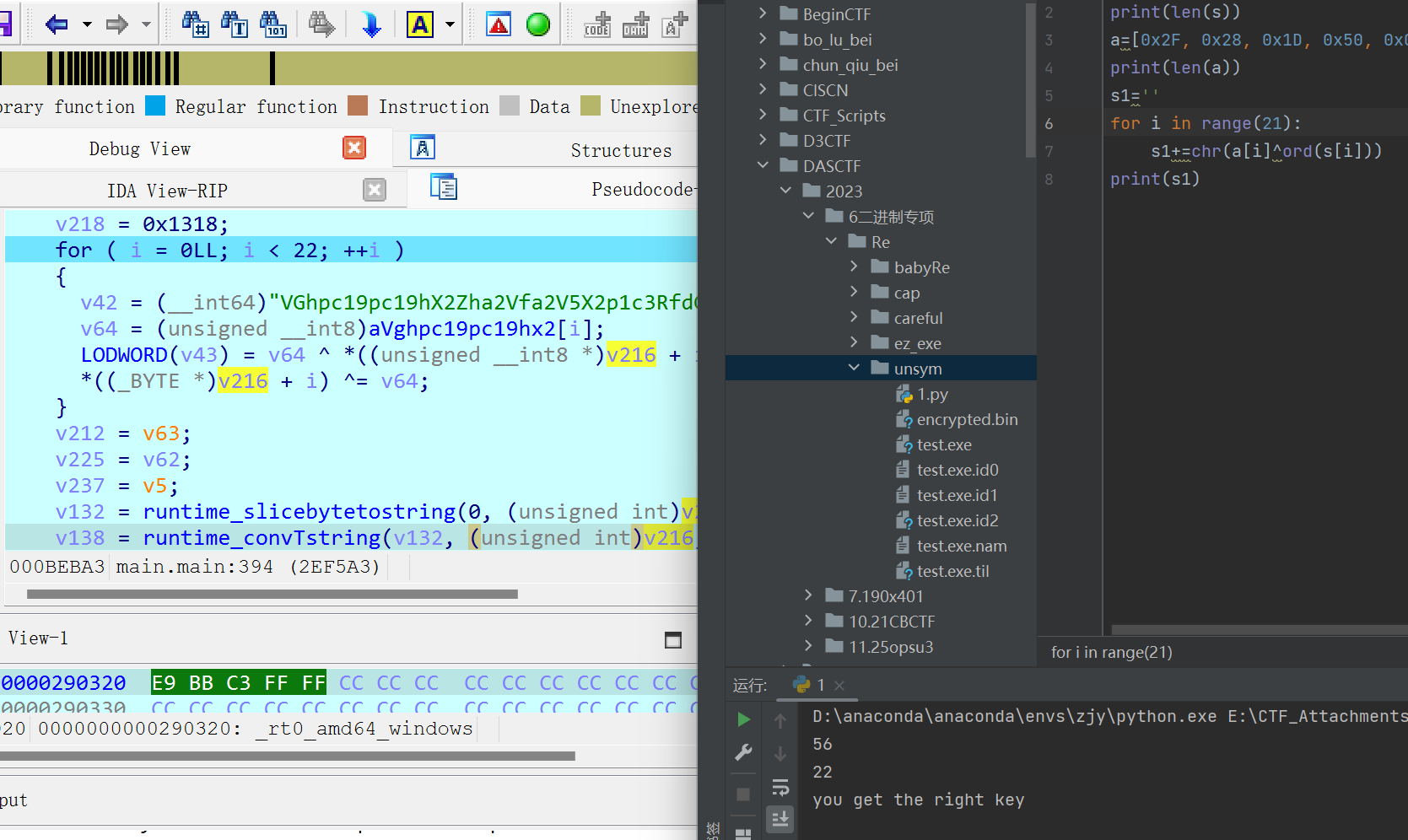

go写的程序，搜索main_main函数

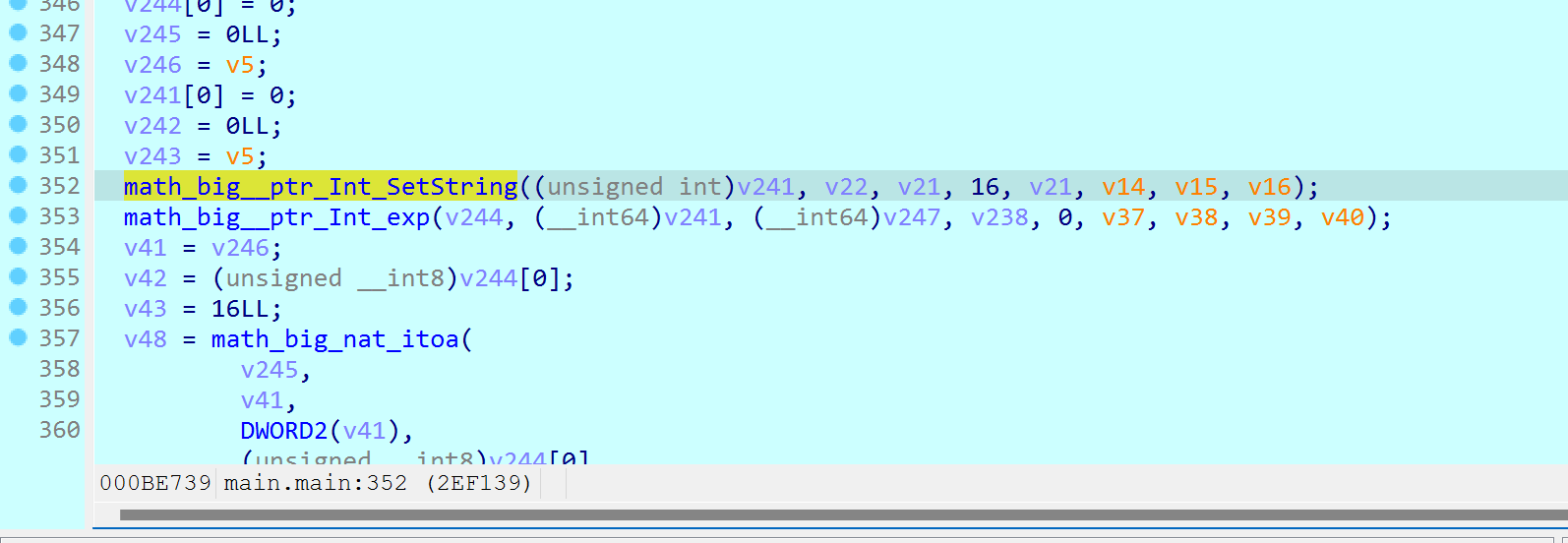

exp函数最容易想到的就是RSA算法，v238 作为底数，v247 作为指数

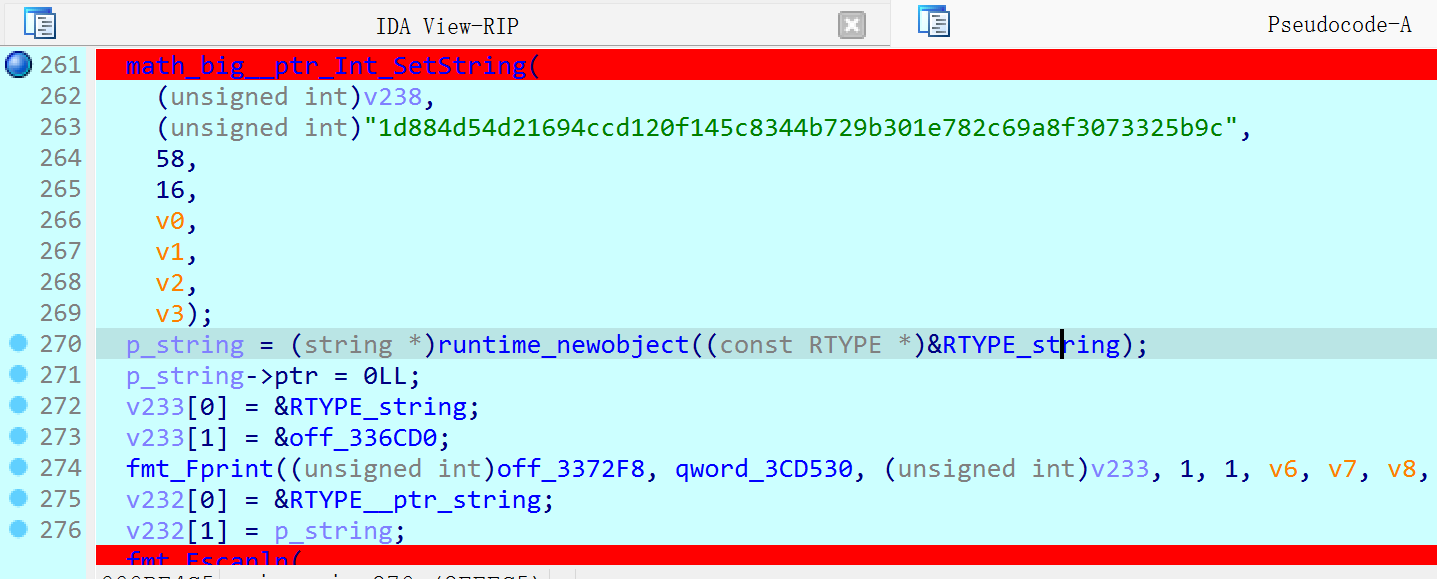

模数n，考虑用yafu分解

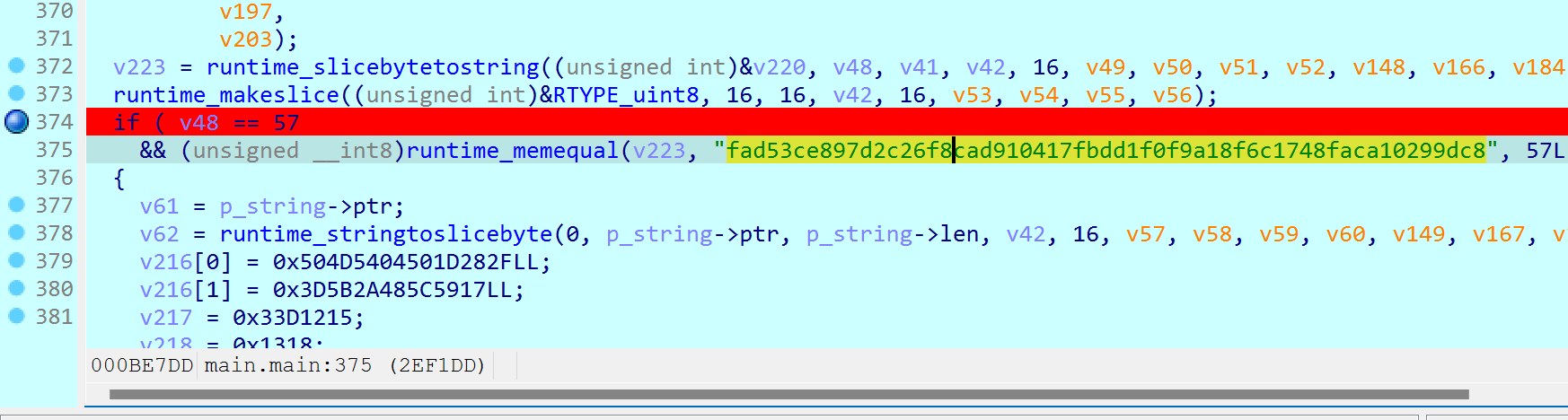

密文c

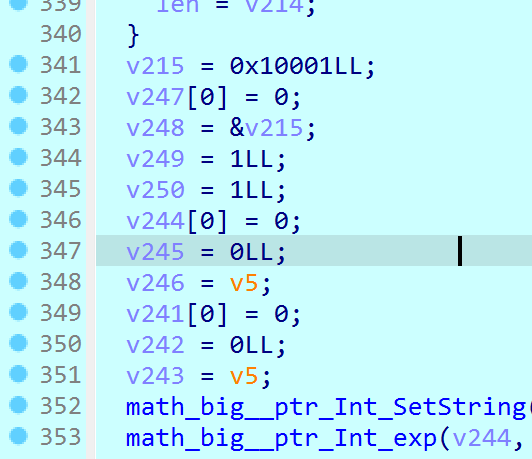

e为0x10001

import gmpy2
from Crypto.Util.number import long_to_bytes

n = 0x1d884d54d21694ccd120f145c8344b729b301e782c69a8f3073325b9c5
p = 37636318457745167234140808130156739
q = 21154904887215748949280410616478423
c = 0xfad53ce897d2c26f8cad910417fbdd1f0f9a18f6c1748faca10299dc8
e = 0x10001
phi = (p - 1) * (q - 1)
d = gmpy2.invert(e, phi)
m = pow(c, d, n)
print(long_to_bytes(m))
# E@sy_RSA_enc7ypt

说明解出来的是key

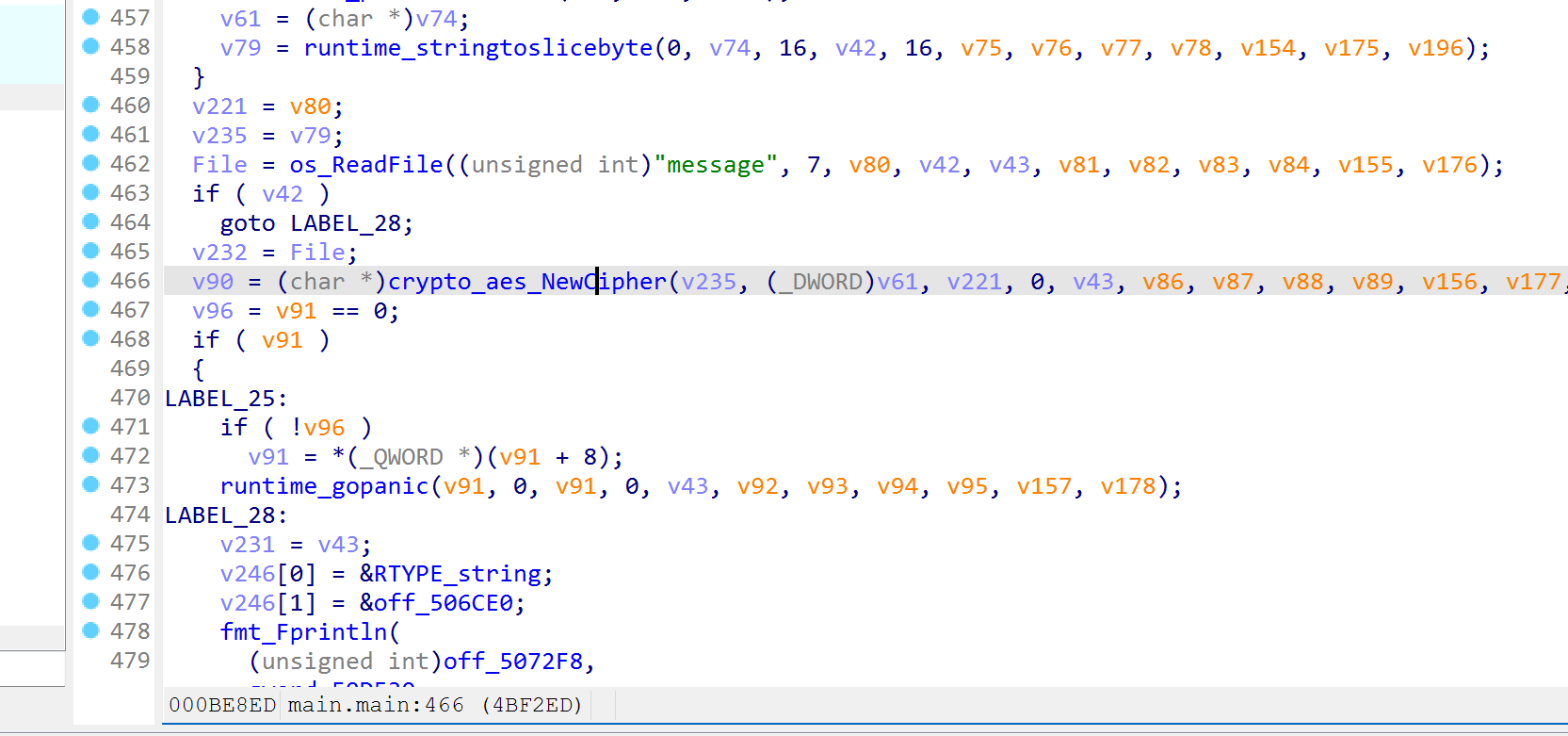

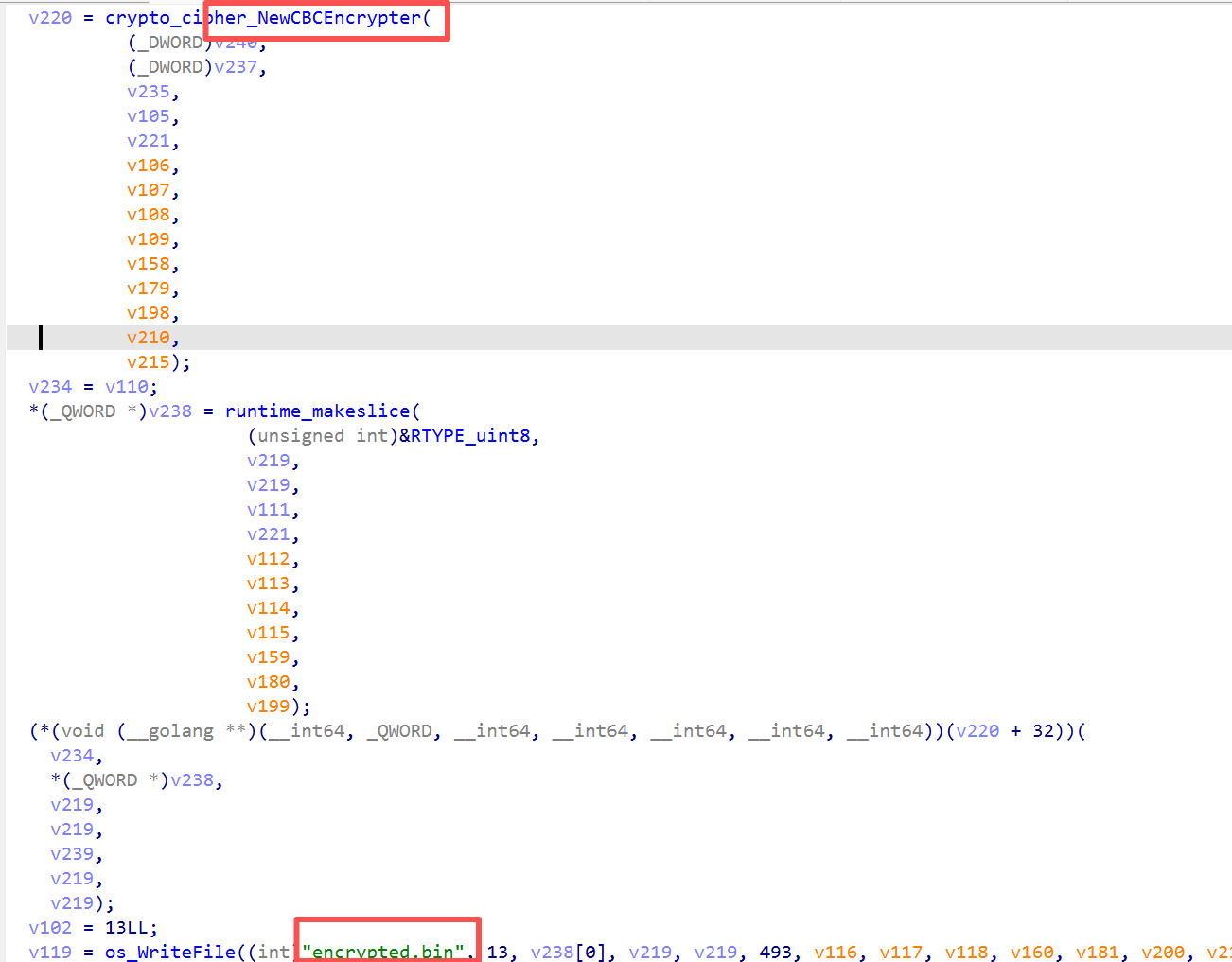

aes_cbc

最后保存为加密bin文件

只设置key，iv随机

from Crypto.Cipher import AES

key = b"E@sy_RSA_enc7ypt"
aes=AES.new(key,AES.MODE_CBC)
c = open("encrypted.bin","rb").read()
print(c)
m = aes.decrypt(c)
open("dec.dump","wb").write(m)

动调发现key和iv一样，也能得到结果

from Crypto.Cipher import AES
password = b'E@sy_RSA_enc7ypt'
iv = b'E@sy_RSA_enc7ypt'
with open('encrypted.bin','rb') as f:
    en_text = f.read()
aes = AES.new(password, AES.MODE_CBC, iv)
de_text = aes.decrypt(en_text)
with open('decrypt.exe','wb') as f:
    f.write(de_text)
