codeQL静态分析

参考文档：https://www.cnblogs.com/Cl0ud/p/15803314.html

https://www.cnblogs.com/hac425/p/14556110.html

https://www.freebuf.com/articles/web/283795.html

官方文档：https://codeql.github.com/codeql-standard-libraries/cpp/

codeql功能

把源代码转化成一个可查询的数据库，通过 Extractor 模块对源代码工程进行关键信息分析提取，构成一个关系型数据库，codeql的处理对象并不是源代码本身，而是中间生成的AST抽象语法树数据库，后续查询操作都在这个数据库中进行

项目编译

databases栏加载test数据库

在/ql/cpp/ql/src下创建一个test.ql来编写ql查询语句

#创建数据库
codeql database create databaseName --source-root=D:/xxljob --language=java

#更新数据库
codeql database upgrade databaseName

#执行扫描规则
codeql database analyze databasePath codeql-repo/java --format=csv --output=result.csv
#eg:codeql database analyze ./libtiff1_dbjob /root/Codeql/ql/codeql/cpp/ql/src/Security/CWE --format=csv --output=result.csv

codeql语法

import cpp
from FunctionCall fc
where fc.getTarget().getName().matches("cancel%")
select fc.getEnclosingFunction(), fc //fc.getEnclosingFunction() 获取包含该调用(cancel开头)的函数

递归

找到宏变量MAX_LENGTH的函数调用链

#include <stdio.h>
#include <string.h>


#define BUFFER_SIZE 64
#define MAX_LENGTH 100


int printAndReturnLength(const char *str) {
    char buffer[BUFFER_SIZE];


    strncpy(buffer, str, BUFFER_SIZE - 1);
    buffer[BUFFER_SIZE - 1] = '\0';


    printf("String (up to %d chars): %s\n", BUFFER_SIZE - 1, buffer);


    size_t length = strlen(str);
    return (length > MAX_LENGTH) ? MAX_LENGTH : length;
}

int print(const char *str) {
    char buffer[BUFFER_SIZE];


    strncpy(buffer, str, BUFFER_SIZE - 1);
    buffer[BUFFER_SIZE - 1] = '\0';


    printf("String (up to %d chars): %s\n", BUFFER_SIZE - 1, buffer);


    size_t length = strlen(str);
    return (length > MAX_LENGTH) ? MAX_LENGTH : length;
}

void callPrintAndReturnLength(const char *str) {
    int length = printAndReturnLength(str);


    printf("Length of the string (up to %d): %d\n", MAX_LENGTH, length);


    if (length > MAX_LENGTH) {
        printf("Warning: String length exceeds the assumed maximum length of %d.\n", MAX_LENGTH);
    }
}



void mainFunction(const char *str) {
    printf("Entering mainFunction\n");



    callPrintAndReturnLength(str);
    print(str);



    printf("Exiting mainFunction\n");
}

int main() {

    char testString[MAX_LENGTH + 1] = "Hello, Nested Function Calls with Macros!";

    testString[MAX_LENGTH] = '\0';


    mainFunction(testString);



    return 0;
}

./codeql database create demo_db –language=cpp –source-root=demo/ -c “gcc demo.c -o demo”

用两个谓词封装方法

import cpp

predicate functionUsesMacro(Function f) {
  exists(MacroInvocation mi |
    mi.getMacroName() = "BUFFER_SIZE" and
    mi.getEnclosingFunction() = f
  )
}

predicate callsChain(Function callee, Function caller) {
  // Base case: caller calls the callee directly
  exists(FunctionCall fc |
    fc.getTarget() = callee and
    fc.getEnclosingFunction() = caller
  ) or
  // Recursive case: continue tracing further up the call chain
  exists(Function intermediate |
    callsChain(callee, intermediate) and
    exists(FunctionCall fc2 |
      fc2.getTarget() = intermediate and
      fc2.getEnclosingFunction() = caller
    )
  )
}

from Function start, Function caller
where
  functionUsesMacro(start) and
  (
    caller = start or
    callsChain(start, caller)
  )
select caller, "Function in the chain."

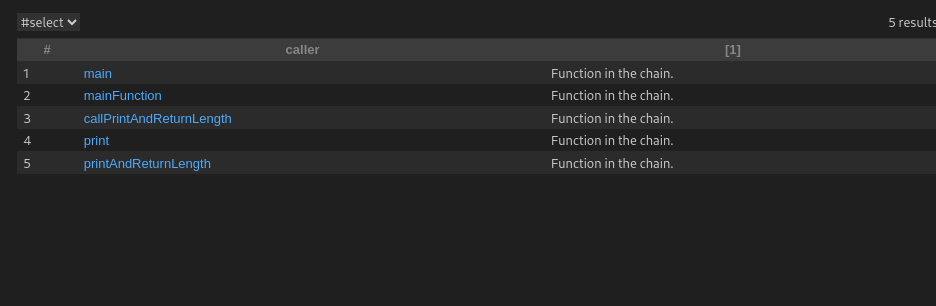

最后以树结构返回，上面的函数调用下面的函数
